| Dimension(L * W * H) in mm |
100 * 50 * 65 |
| Weight(gf) |
360 |
| Sample Size |
∞
|
| Resolution |
640*480,320*240 /pixels(고해상도 조절가능)
|
| Mesuring Speed |
60 Frame/sec
|
| Light source |
LED Lamp
|
| Drop Method |
- One tuch full auto system (두가지 드랍방식)
- (Touch Down(오토터치)
- fall by pressure dosing(오토 낙하방식)
|
| Operating Sysetm |
WindowsXP ,windows7 , windows8 ,windows10
|
| Mesuring Methods |

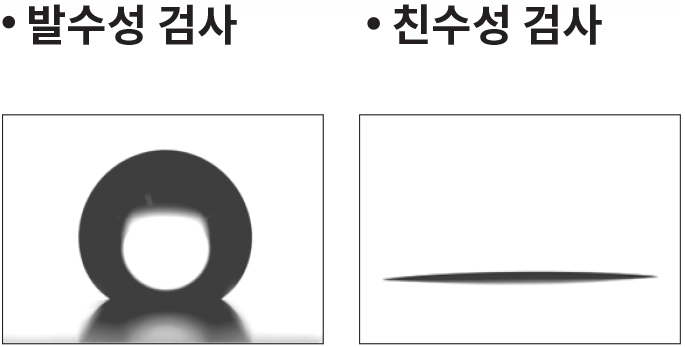

- Static Contact angle ,Dynamic contact angle(option)
- Surface analysis(option), sessile drop method
- Surface Tention, sessile drop method
- Surface Energy
|
| Mesuring Range |
0° ~ 180° ± 1° ,accuracy 0.1°
|
| Accessories |
S/W,accessory
|
| Data transfer interface |
Notebook or Deskop (usb 2.0,usb 3.0)
|
