Auto tilting system(접촉각측정기 틸팅시스템)

Auto tilting system

소프트웨어를 통한 정확한 Tilting 시스템 (좌,우 90도 틸딩) Captive bubble method
Precision 측정각 실시간 확인 고성능 줌렌즈, Giga Ethernet camera
측정각에 대한 평균 산출기능 전진각, 후진각 측정
표면장력및 표면에너지 산출 표면검사

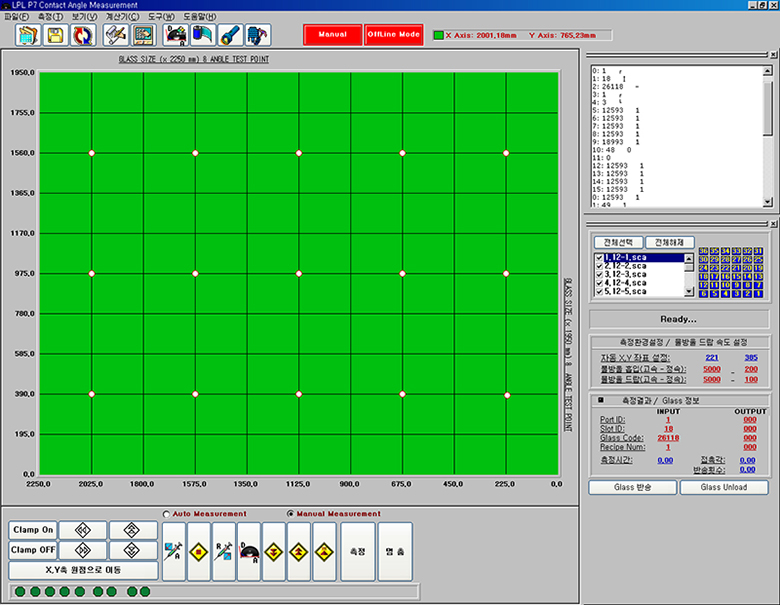

멀티 드랍시스템 드랍포인트 자동 인식 시스템
오토 포커스 시스템 Sessile drop / Free fall drop

Technical Details

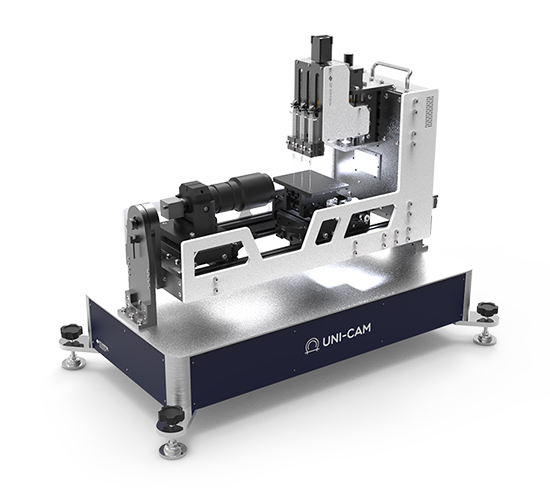

Model Name UNI-CAM/VA
Operation System Windows XP,Windows7,Windows8,windows10
Dimension(L x W x H)/mm Customize
Weight(Kgf) 18kgf
Drop Type Auto drop(Controlby lever)
Measurement Methods automeasurementby software(option)
Light source LED module
Resolution 640 x 480 Pixel resolution up to (1328x1048)
Camera Frame/Line rate 120frame/sec
Lens Zoom Lens(variou angle)
Sample Size (L x W x H)/mm Customize
Measuring Methods
  • Static Contact angle
  • Dynamic Contactangle (Advancing,Receding Contactangle)
  • Surfacetension by pendent drop method (1-1,000 dyn/cm )
  • Surface Energy, geometric, harmonic & Lewis-Acid method-Auto & manual function
Measuring Range 0-180 degree,± 0.05 Accuracy
Data transfer interface
  • Giga Ethernet , PCI , USB
  • Desktop PC or Notebook
