| Model Name |
UNI-CAM/VA |
| Operation System |
Windows XP,Windows7,Windows8,windows10 |
| Dimension(L x W x H)/mm |
Customize |
| Weight(Kgf) |
19kgf
|
| Drop Type |
Auto Drop(Head Down) & sessiledrop
|

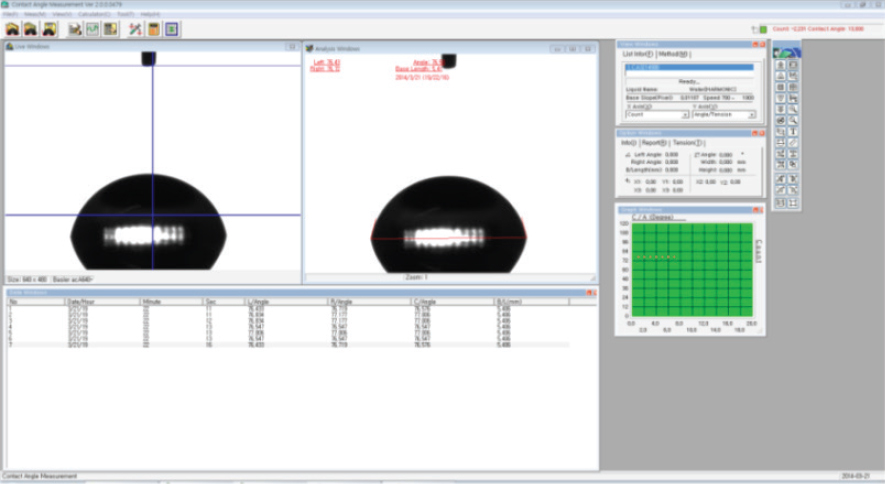

| Measurement Methods |
Auto & Manual two-way Measurement
|
| Light source |
LED module
|
| Resolution |
640 x 480 Pixel resolution up to (1328x1048)
|
| Camera Frame/Line rate |
120frame/sec
|
| Lens |
Zoom Lens(variou angle)
|
| Sample Size (L x W x H)/mm |
Customize
|
| Measuring Methods |
- Static Contact angle
- Dynamic Contactangle (Advancing,Recedingcontactangle)
- Surfacetension by pendent drop method (1-1,000 dyn/cm )
- Surface Energy, geometric, harmonic & Lewis-Acid method-Auto & manual function
|
| Measuring Range |
0 ~ 180 degree,± 0.1 Accuracy
|
| Data transfer interface |
- Giga Ethernet , PCI , USB
- Desktop PC or Notebook
|
